Aircraft

• Takeoff Weight

• 895 g

• Dimensions

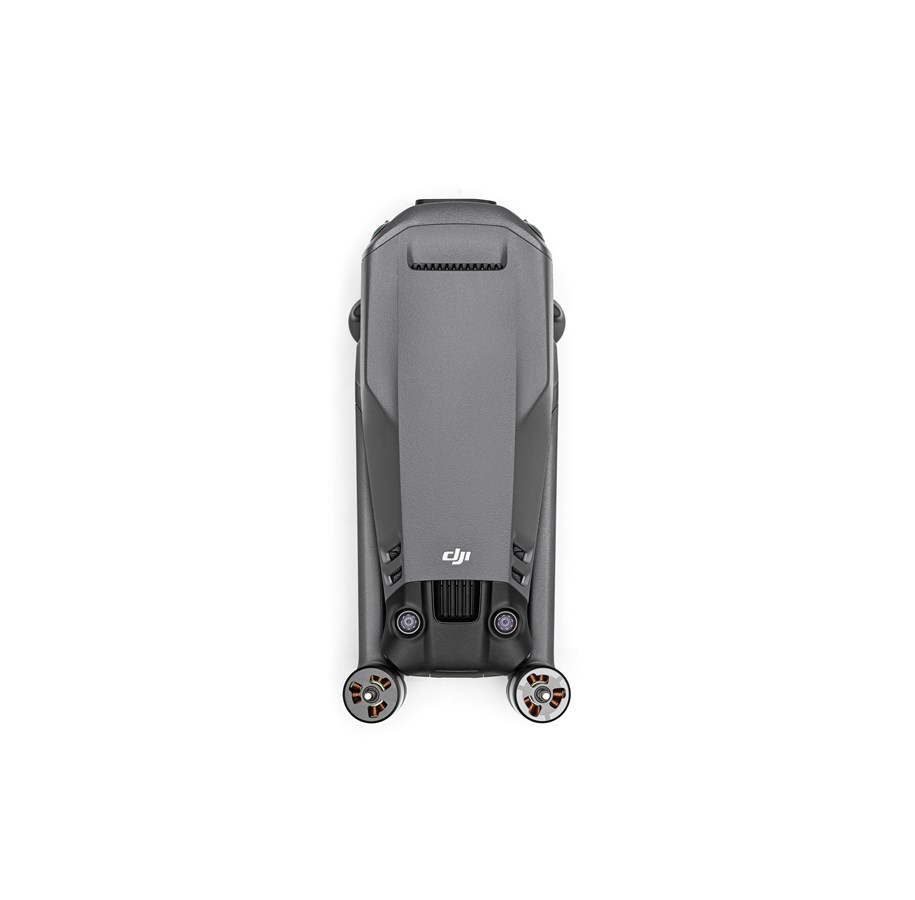

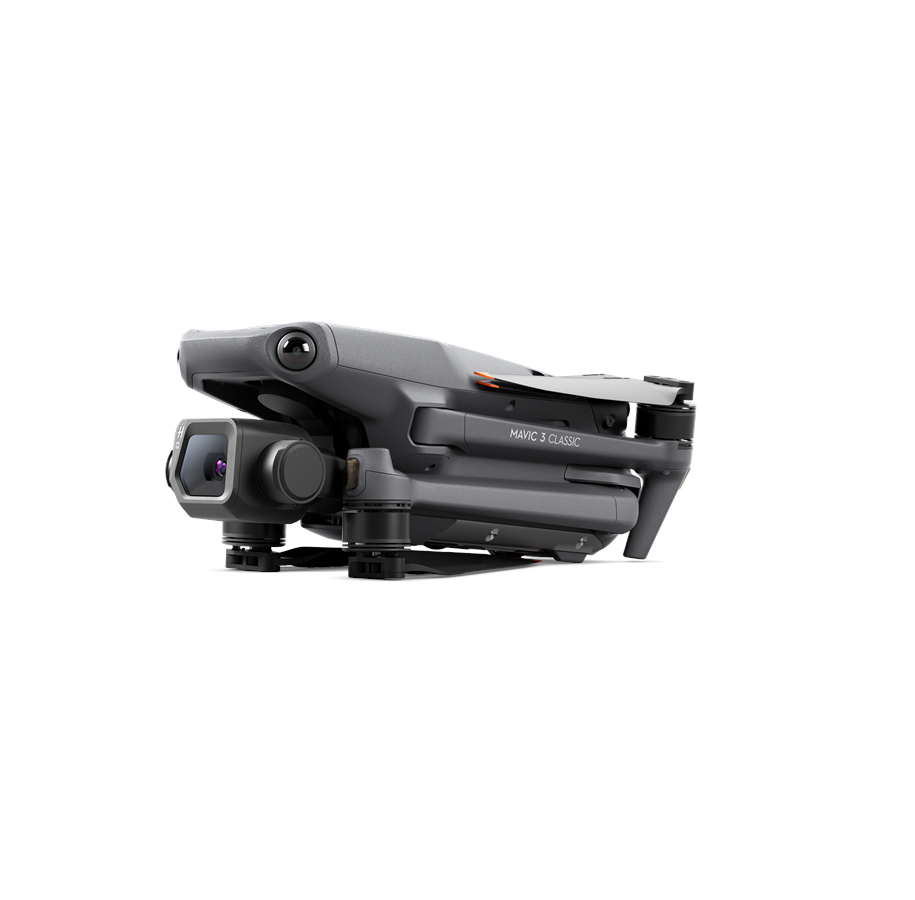

• Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
  Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)

• Max Ascent Speed

• 8 m/s

• Max Descent Speed

• 6 m/s

• Max Horizontal Speed (at sea level, no wind)

• 21 m/s
  ^{No faster than 19 m/s in EU regions.}

• Max Takeoff Altitude

• 6000 m

• Max Flight Time

• 46 minutes
  ^{Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.}

• Max Hovering Time

• 40 minutes
  ^{Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on environment, actual use, and firmware version.}

• Max Flight Distance

• 30 km
  ^{The flight distance is different from the video transmission distance. The data was tested in a controlled environment, under the following specific test conditions: flying at a constant speed of 50.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.}

• Max Wind Speed Resistance

• 12 m/s

• Max Pitch Angle

• 35°

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with high-precision positioning system)

• Internal Storage

• 8 GB (approx. 7.9GB available space)

Hasselblad Camera

• Image Sensor

• 4/3 CMOS, Effective Pixels: 20 MP

• Lens

• FOV: 84°
  Format Equivalent: 24 mm
  Aperture: f/2.8-f/11
  Focus: 1 m to ∞

• ISO Range

• Video:
  Normal, Slow-motion:
  100-6400 (normal color)
  400-1600 (D-Log)
  100-1600 (D-Log M)
  100-1600 (HLG)
  Night Mode:
  800-12800 (normal color)Photo:
  100-6400

• Shutter Speed

• Electronic Shutter: 8-1/8000 s

• Max Image Size

• 5280×3956

• Still Photography Modes

• Single Shot: 20 MP
  Burst Shooting: 20 MP, 3/5/7 frames
  Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
  Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• H.264/H.265
  5.1K: 5120×2700@24/25/30/48/50 fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
  4K: 3840×2160@24/25/30/48/50/60/120* fps
  FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
  ^{* Recording frame rates. The corresponding video plays as slow-motion video.}

• Video Format

• MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

• Max Video Bitrate

• H.264/H.265: 200 Mbps

• Supported File System

• exFAT

• Color Mode

• Normal/HLG/D-Log/D-Log M

• Digital Zoom

• 3× (only in Video Mode)

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 100°
  Roll: -45° to 45°
  Pan: -27° to 27°

• Controllable Range

• Tilt: -90° to 35°
  Pan: -5° to 5°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.007°

Sensing

• Sensing Type

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range:
  0.5-20 m
  Detection Range:
  0.5-200 m
  Effective Sensing Speed:
  Flight Speed ≤ 15 m/s
  FOV:
  Horizontal 90°, Vertical 103°

• Backward

• Measurement Range:
  0.5-16 m
  Effective Sensing Speed:
  Flight Speed ≤ 12 m/s
  FOV:
  Horizontal 90°, Vertical 103°

• Lateral

• Measurement Range:
  0.5-25 m
  Effective Sensing Speed:
  Flight Speed ≤ 15 m/s
  FOV:
  Horizontal 90°, Vertical 85°

• Upward

• Measurement Range:
  0.2-10 m
  Effective Sensing Speed:
  Flight Speed ≤ 6 m/s
  FOV:
  Front and Back 100°, Left and Right 90°

• Downward

• Measurement Range:
  0.3-18 m
  Effective Sensing Speed:
  Flight Speed ≤ 6 m/s
  FOV:
  Front and Back 130°, Left and Right 160°

• Operating Environment

• Forward, Backward, Left, Right, and Upward:
  surfaces with discernible patterns and adequate lighting (lux >15)
  Downward:
  surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)

Video Transmission

• Video Transmission System

• O3+

• Live View Quality

• Remote Controller:
  1080p/30fps, 1080p/60fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmission Power (EIRP)

• 2.400-2.4835 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Max Transmission Distance (free of interference)

• FCC: 15 km
  CE: 8 km
  SRRC: 8 km
  MIC: 8 km
  ^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.}

• Max Transmission Distance (with interference)

• Strong Interference: urban landscape, approx. 1.5-3 km
  Medium Interference: suburban landscape, approx. 3-9 km
  Low Interference: suburb/seaside, approx. 9-15 km
  ^{Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual flight distance.}

• Max Download Speed

• O3+:
  5.5 MB/s (with DJI RC-N1 Remote Controller)
  15 MB/s (with DJI RC Pro)
  5.5 MB/s (with DJI RC)Wi-Fi 6: 80 MB/s*
  ^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• 130 ms (with DJI RC-N1 Remote Controller)
  120 ms (with DJI RC Pro)
  130 ms (with DJI RC)
  ^{Depending on the actual environment and mobile device.}

• Antennas

• 4 antennas, 2T4R

Battery

• Capacity

• 5000 mAh

• Weight

• 335.5 g

• Nominal Voltage

• 15.4 V

• Charging Voltage Limit

• 17.6 V

• Type

• Li-ion 4S

• Energy

• 77 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• Approx. 96 minutes
  ^{Use the included data cable of the DJI 65W Portable Charger.}

Charger

• Input

• 100-240 V (AC), 47-63 Hz, 2 A

• Output

• USB-C:
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 AUSB-A:
  5 V, 2 A

• Rated Power

• 65 W

Battery Charging Hub

• Input

• USB-C: 5-20 V, max 5 A

• Output

• Battery Port: 12-17.6 V, max. 5 A

• Rated Power

• DJI Mavic 3 Battery Charging Hub: 65 W
  DJI Mavic 3 Battery Charging Hub (100W): 100 W

• Charging Type

• Three batteries charged in sequence

• Compatibility

• DJI Mavic 3 Intelligent Flight Battery

Car Charger

• Input

• Car Power Input:
  12.7-16 V, 6.5 A, rated voltage 14 V (DC)

• Output

• USB-C:
  5 V, 5 A
  9 V, 5 A
  12 V, 5 A
  15 V, 4.3 A
  20 V, 3.25 A
  5-20 V, 3.25 AUSB-A:
  5 V, 2 A

• Rated Power

• 65 W

• Charging Temperature

• 5° to 40° C (41° to 104° F)

Storage

• Recommended microSD Cards

• Lexar 1066x 64GB V30 A2 microSDXC
  Lexar 1066x 128GB V30 A2 microSDXC
  Lexar 1066x 256GB V30 A2 microSDXC
  Lexar 1066x 512GB V30 A2 microSDXC
  SanDisk High Endurance 64GB V30 microSDXC
  SanDisk High Endurance 128GB V30 microSDXC
  SanDisk High Endurance 256GB V30 microSDXC
  Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
  Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
  Kingston Canvas Go! Plus 256GB V30 A2 microSDXC
  Kingston Canvas Go! Plus 512GB V30 A2 microSDXC

Remote Controller

• Max Operating Time

• DJI RC-N1 Remote Controller
  Without charging any mobile device: 6 hours
  When charging a mobile device: 4 hours

• Max Supported Mobile Device Size

• DJI RC-N1 Remote Controller
  180×86×10 mm (L×W×H)

• Operating Temperature

• DJI RC-N1 Remote Controller
  -10° to 40° C (14° to 104° F)

• Transmitter Power (EIRP)

• DJI RC-N1 Remote Controller
  2.400-2.4835 GHz:
  < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)5.725-5.850 GHz:
  < 26 dBm (FCC)
  < 23 dBm (SRRC)
  < 14 dBm (CE)
